Coaxial Cable

ColorLength
  Photo Description Color Length Datasheet
RG6/U 75Ω Coaxial Cable

RG6/U Coaxial Cable

Key features:
-75Ω
-1.02mm Copper Clad Steel (CCS) Conductor, High electrical conductivity
-Foam PE insulation
-Bonded AL/P-Foil shield,100% coverage
-Al wire braid shield, Over 58% Coverage
-6.90mm OD
-PVC Jacket

Standard:
RoHS Complies



100M





200M

53-30-0006

(53-30-0006)

53-30-0006

(53-30-1006)

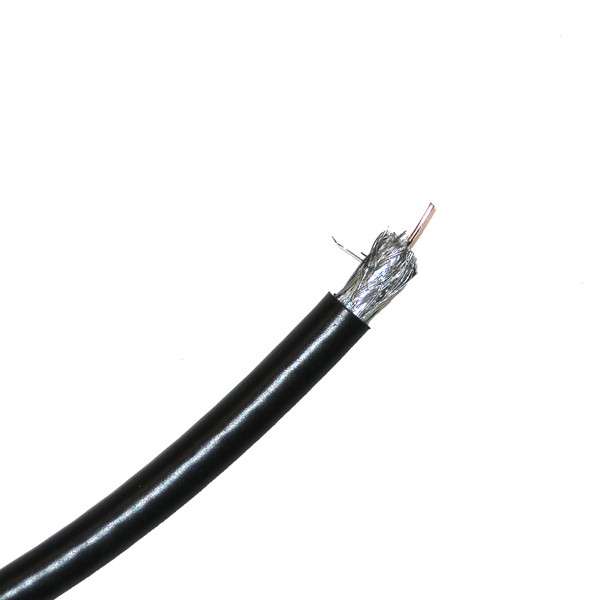

RG59/EC Coaxial Cable

Key features:
-75Ω
-0.643mm Copper Clad Steel(CSS) Conductor
-Foam PE insulation
-Bonded AL/P-Foil shield
-Over 65% coverage
-6.2mm OD-PVC Jacket

Standard:
EU RoHS Complies



100M





200M

(53-30-3059)

(53-30-2059)

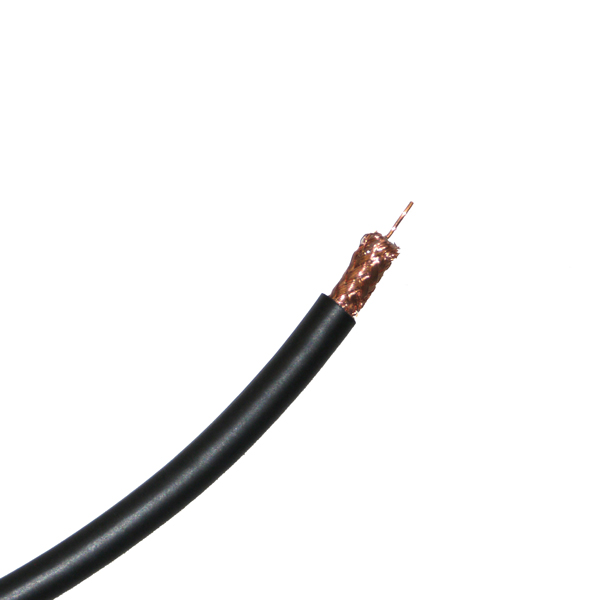

RG59B/U 75Ω Coaxial Cable

Key features:
-75Ω
-0.6mm Solid Bare Copper Conductor
-Solid PE insulation
-Bare copper braid shield, Over 90% coverage
-Over 65% coverage
-6.2mm OD
-PVC Jacket



300M





600ft

(53-30-0059)

(53-30-1059)

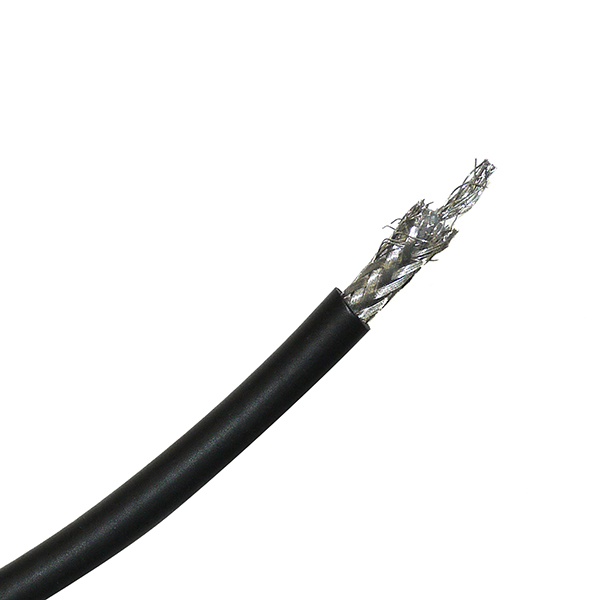

RG58A/U Coaxial Cable

Key features:
-
50Ω
-0.18mm Stranded Tinned Copper Conductor
-Solid PE insulation
-Tinned copper braid shield, Over 90% coverage
-Over 90% coverage
-5.00mm OD
-PVC Jacket


300ft

(53-30-0058)





3C2V Coaxial Cable

Key Features:
-75Ω
-0.50mm Solid Plain Annealed Copper Conductor
-Solid PE insulation
-AL Foil, 100% coverage
-Plain Annealed Copper wire braid shield, 35% coverage
-5.0mm OD
-PVC Jacket

Standard:
UL AWM Style 1354

0









200M





300ft

(53-30-1032)

(53-30-2032)

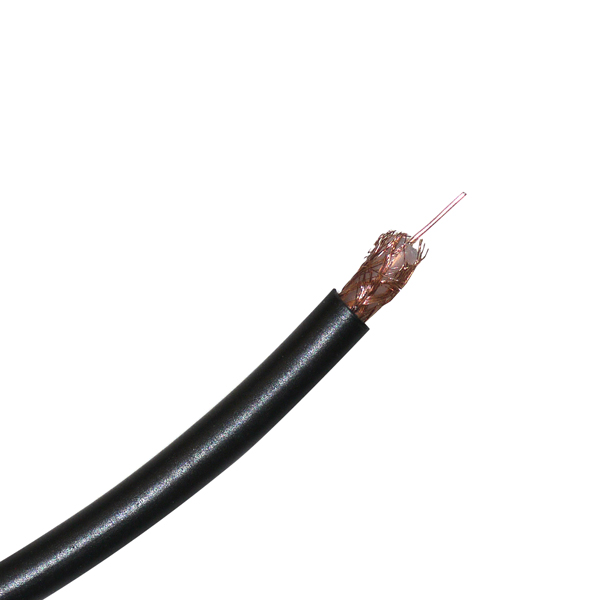

3C2V Coaxial Cable

Key Features:
-75Ω
-0.50mm Solid Bare Copper Conductor
-Solid PE insulation
-Tinned Copper braid shield,Over 85% coverage
-5.0mm OD
-PVC Jacket









300ft







(53-30-0032)

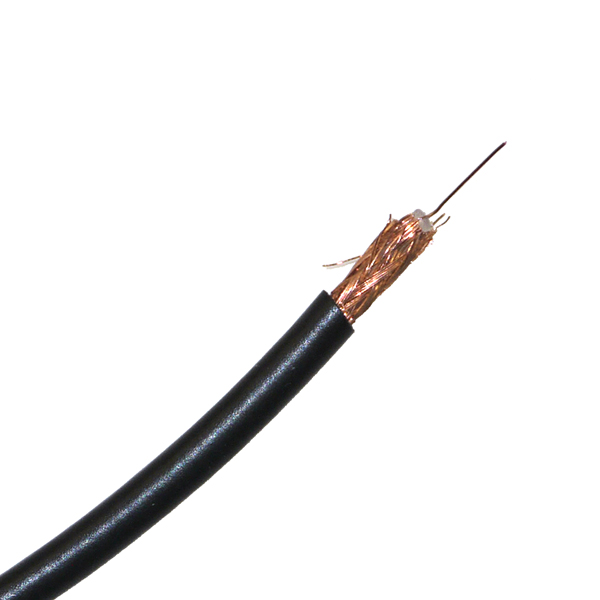

1.5C 2V , 75Ω,Coaxial Cable,

1.5C 2V Coaxial Cable

Key features:
-
75Ω
-0.25mm Copper Clad Steel(CCS) Conductor
-Solid PE insulation
-Bare Copper braid shield,over 90% coverage
-3.0mm OD
-PVC Jacket


300ft

(53-30-1500)




* All photos and specifications are subject to change without notice.
